Multi-Chip LED High Bay Lights

Products Introduction:

200W LED High Bay Lights
Model: SL-HB200W
Lighting Source:SMD
Chip Brand:Bridgelux/Epistar
LEDs Quantity:1 PC 200W
Power Consumption: 200W
Input Voltage (Driver): 85-265VAC /50-60HZ
Efficiency: ≥85%
PF: ≥0.92
Operation Temperature -40 ~ +50℃
Colors:Warm white CCT3000K,Natural white:CCT4000K,Cool white CCT6000K
Luminous: 20000lm (±5%)
Products Features:

1. Mercury-free, lead-free and energy efficiency illuminant, environmental friendly lamp.

2. Over 30% energy consumption saved comparing to high pressure sodium lamp.

3. Fin-type aluminum housing+coper pipe heat dissipation

4. Anodized aluminum reflector keeps the even and efficient lighting effect,

   and coordinates with the radiator, effecting a cooling system to ensure safe performance for long-hour working request.

5. High power Led illuminant provides comfortable light without radiation, flicker or UV

Model No                    Dimensions    Wattage  Input Voltage  Initial Lumens      CCT                Ra       Diffuser            Life Span
                                             (CM)               (W)              (V)                    (LM)                  (K)                             (Degree)               (Hrs)

SL-HB200W-CW           28*38               200           85~265             21000         5500~6000         80      45/90/120              50,000

SL-HB200W-NW           28*38               200           85~265             20000         5500~6000         80      45/90/120              50,000

SL-HB200W-WW           28*38               200           85~265             19000         5500~6000         80      45/90/120              50,000


200W LED high bay lights Dimensions:



200W LED High bay diffusers:


200W LED high bay lights Light Distribution:

200W LED high bay lights Packing Information:


200W LED high bay lights Installation Instructions:

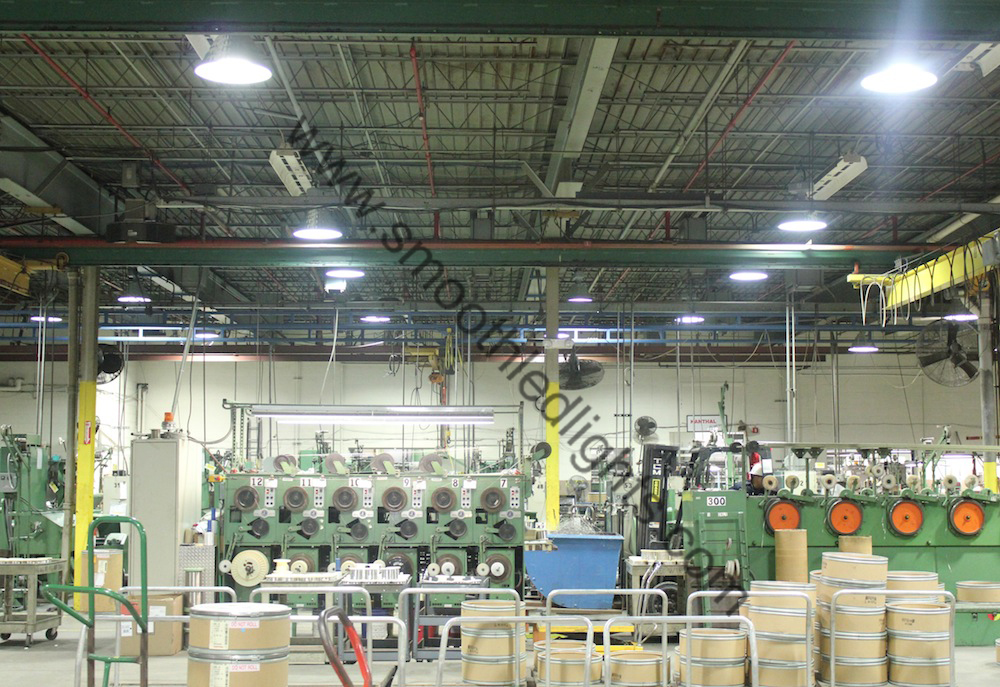

200W LED high bay lights Application
It is suitable for workshop, factory building,storeroom,toll gate, gas station, large supermarket,exhibition hall, and gymnasium ect.
